Vector™ Slot Adapter

The Vector™ slot applicator is available in six coating widths ranging from 100mm to 600mm, expandable in 100mm increments, providing extreme accuracy at the point of application.


  • Slot applicator shares a common pump base with other applicators including spray and bead.
  • Pumps can be configured every 50mm or on custom centers.
  • Features the Apex™ Series high-speed module with patent pending quick-change Festo solenoid. Apex™ Series modules can provide intermittent patterns as low as 4 ms or on time.
  • AC or Servo motor and precision gearbox for accurate speed control of pumps (1 to 45RPM).
  • Precision hardened steel die plates for long life.
  • Metering accuracy of up to ±0.5% every 25mm width. Standard applicator available in widths of 100mm, 200mm, 300mm, 400mm, 500mm, and 600mm.
  • Vector™ applicator capable of providing an individual metered flow output to each module.
  • Vector™ pumps can be changed out in less than five minutes, minimizing changeover time.
  • Available in a V-Slot configuration for multiple stripe patterns and very fast cycle speeds.


The Dynatec Difference

Vector™ Quick-Change Metering Pumps

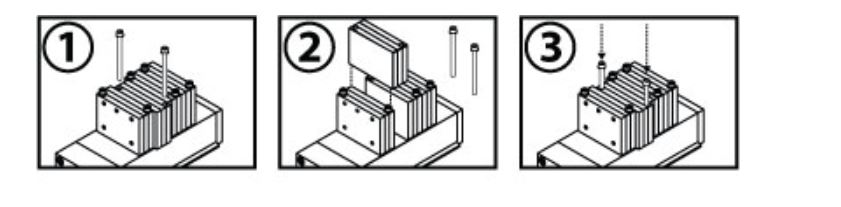

Vector™ Pumps can be easily changed in less than five minutes by removing two retaining screws. With conventional equipment, pump changes often take more than an hour of cumbersome work with significant downtime.


Operating temperature

From 10ºC to 218ºC (50º F- 425ºF)

Adhesive Add-on rates

0,4-300 ccm/min/pump

Operating viscosity

500-30 000 cps

Temperature zones

1 adhesive, 1 air heater

Elérhető szivattyúméretek

0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.7, 3.34 cc/rev.

Avaiable head sizes

100mm/4 pump, 200mm/8 pump, 300mm/12 pump, 400mm/16 pump, 500mm/20 pump, 600mm/24 pump
